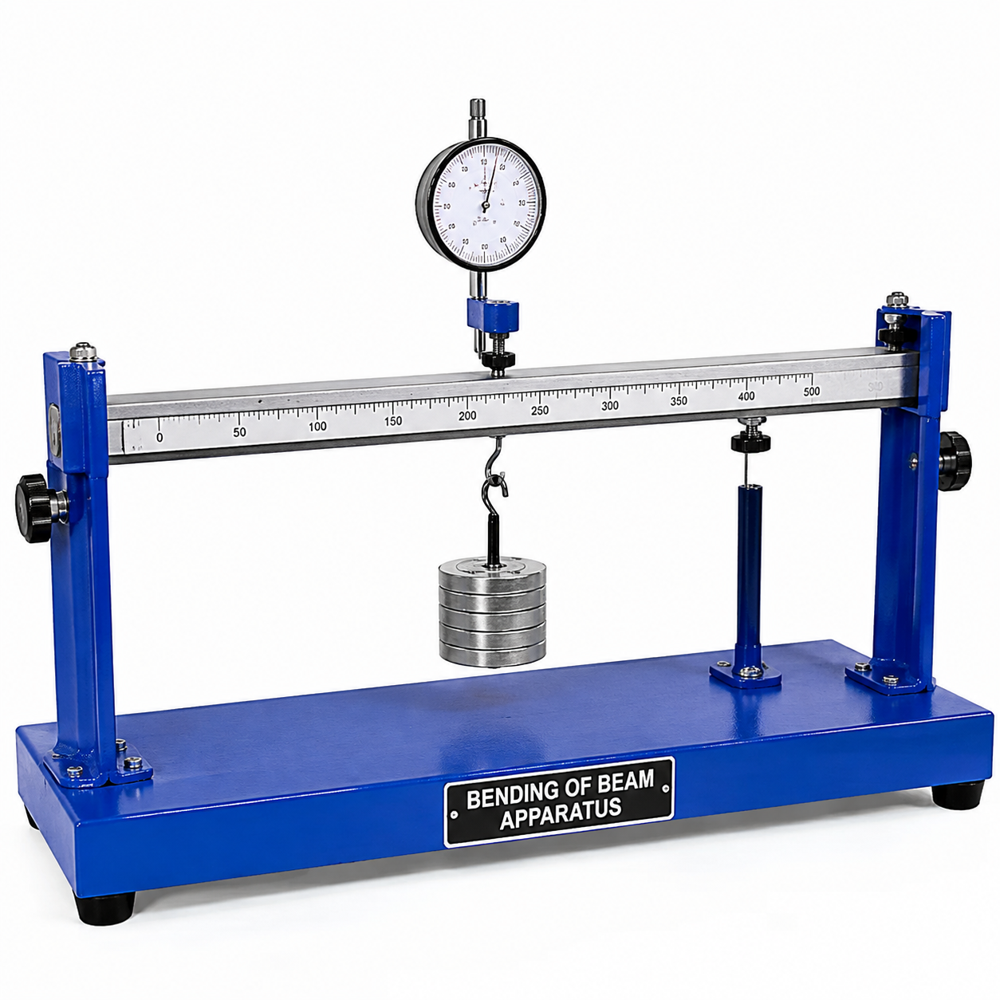

BENDING OF BEAM APPRATUS

Name: BENDING OF BEAM APPRATUS
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 2063.0 INR
Availability: InStock

Price 2063.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BENDING OF BEAM APPRATUS Specification

Shape
Rectangular

Accuracy
0.01 mm (Dial Gauge)

Features
Corrosion resistant coated frame, Removable weight hanger, Graduated scale, Easy to assemble/disassemble

Control Type
Manual

Display Type
Analog Dial Gauge

Temperature Resistance
Ambient laboratory conditions

Type
Bending of Beam Apparatus

Dimension (L*W*H)
Approx. 800 x 200 x 400 mm

Equipment Type
Mechanical Testing Equipment

Equipment Materials
Mild Steel, Stainless Steel

Power
Not required (manual operation)

Material
Mild Steel, Aluminum, Stainless Steel

Application
Educational Laboratory, Engineering Colleges, Strength of Materials Experiments

Weight Set
Supplied with calibrated weights (requires custom set depending on supplier)

Dial Gauge Range
0-10 mm or greater

Beam Length
Up to 600 mm (graduated scale)

Usage
Demonstrates bending and deflection in beams

Compatibility
Suitable for rectangular, round, or I-section beams (as per model)

Assembly
Supplied knocked down with assembly manual

Support Type
Simple supports, knife edges

Weight Hanger Capacity
Up to 5 kg

Maintenance
Minimal, periodic cleaning

Finish
Powder coated for durability

About BENDING OF BEAM APPRATUS

Bending of Beam Apparatus

Product Name: Bending of Beam Apparatus

Bending of Beam Apparatus is a high-quality physics laboratory instrument designed to study the bending behavior of beams under different loading conditions. It is widely used in engineering colleges, universities, and educational laboratories to demonstrate the relationship between load, deflection, and elastic properties of materials.

The Bending of Beam Apparatus is an essential laboratory setup used for performing experiments on the bending of beams, Youngs modulus determination, and deflection analysis. This precision-engineered apparatus helps students and researchers understand the principles of elasticity, stress, strain, and beam deformation.

Manufactured with a sturdy metal base, adjustable supports, graduated beam scale, loading arrangement, and precision dial gauge, this apparatus provides accurate measurement of beam deflection when various loads are applied. It is suitable for practical demonstrations in engineering mechanics, strength of materials, and applied physics laboratories.

The apparatus is designed for easy operation, excellent durability, and reliable experimental results. It is commonly supplied to engineering colleges, polytechnic institutes, research laboratories, and educational institutions for conducting bending moment and beam deflection experiments.

Key Features:

High precision beam deflection measurement system
Strong and durable metal construction
Adjustable beam support arrangement
Accurate dial gauge for displacement measurement
Easy loading mechanism with weight hanger
Suitable for elasticity and strength of materials experiments
Ideal for engineering and physics laboratories

Applications:

Study of bending of beams
Determination of Youngs modulus
Verification of beam deflection theory
Strength of materials experiments
Engineering mechanics practicals

Technical Specifications:

Type: Laboratory Beam Bending Apparatus
Material: MS/Metal body with precision components
Measuring Device: Dial gauge
Beam Type: Simply supported beam arrangement
Load Arrangement: Weight hanger with slotted weights
Usage: Engineering & Physics Laboratory

Frequently Asked Questions (FAQ):

Q1. What is a Bending of Beam Apparatus used for?
A. It is used to study the bending behavior of beams and measure deflection under applied loads.

Q2. Which experiments can be performed using this apparatus?
A. It is used for Youngs modulus determination, beam deflection experiments, and elasticity studies.

Q3. Where is Bending of Beam Apparatus used?
A. It is used in engineering colleges, universities, polytechnic institutes, and physics laboratories.

Q4. What materials are used in manufacturing this apparatus?
A. It is manufactured using durable metal components to provide stability and long service life.

SEO Keywords:
Bending of Beam Apparatus Manufacturer, Beam Bending Experiment Apparatus, Strength of Materials Lab Equipment, Youngs Modulus Apparatus, Engineering Physics Laboratory Equipment, Beam Deflection Apparatus, Scientific Laboratory Instruments Manufacturer.

Versatile Beam Testing Platform

The apparatus is compatible with different beam profiles such as rectangular, round, or I-section, making it suitable for a variety of laboratory experiments. With its graduated scale and analog dial gauge, students can measure deflection accurately, enhancing their understanding of material properties and structural analysis.

Durable Construction and Easy Maintenance

Manufactured using premium mild steel, stainless steel, and aluminum, the apparatus boasts a powder-coated finish for excellent corrosion resistance. Maintenance is minimal, limited to occasional cleaning, ensuring longevity for years of classroom and laboratory use.

Simple Assembly and Manual Operation

The Bending of Beam Apparatus is supplied in a knocked-down format with a comprehensive assembly manual, facilitating quick and straightforward setup. It requires no electrical power, operating fully manually with analog controls for ease of use.

FAQ's of BENDING OF BEAM APPRATUS:

Q: How is the Bending of Beam Apparatus assembled and set up for experiments?

A: The apparatus is shipped knocked down with a detailed assembly manual. Set up involves attaching the supports, placing the graduated scale, mounting the dial gauge, and positioning the weight hanger. The process is straightforward and requires basic manual assembly; no power tools are needed.

Q: What types of beams can be tested using this apparatus?

A: This equipment supports rectangular, round, and I-section beams up to 600 mm, depending on the selected model. This versatility enables a wide range of experiments and educational demonstrations in strength of materials.

Q: When is this apparatus typically used in an academic setting?

A: It is commonly used during practical laboratory sessions in engineering colleges and technical institutes, particularly in experiments related to the strength of materials and structural analysis. It helps students visualize theoretical concepts through hands-on activities.

Q: Where is the Bending of Beam Apparatus most beneficial?

A: The apparatus is invaluable in educational laboratories, engineering colleges, and research settings where understanding beam deflection and bending is important for mechanical or civil engineering studies.

Q: What is the process for measuring beam deflection with this apparatus?

A: To measure beam deflection, you place the beam on the knife edge supports, hang calibrated weights at specific points, and use the analog dial gauge to record the resulting deflection. The device ensures accuracy up to 0.01 mm, enabling precise measurements for analysis and reporting.

Q: What are the key benefits of using this Bending of Beam Apparatus?

A: Benefits include its easy assembly, manual operation, durability due to corrosion-resistant coatings, and compatibility with various beam shapes. It offers accurate, hands-on learning for strength of materials concepts without the need for electrical power.
