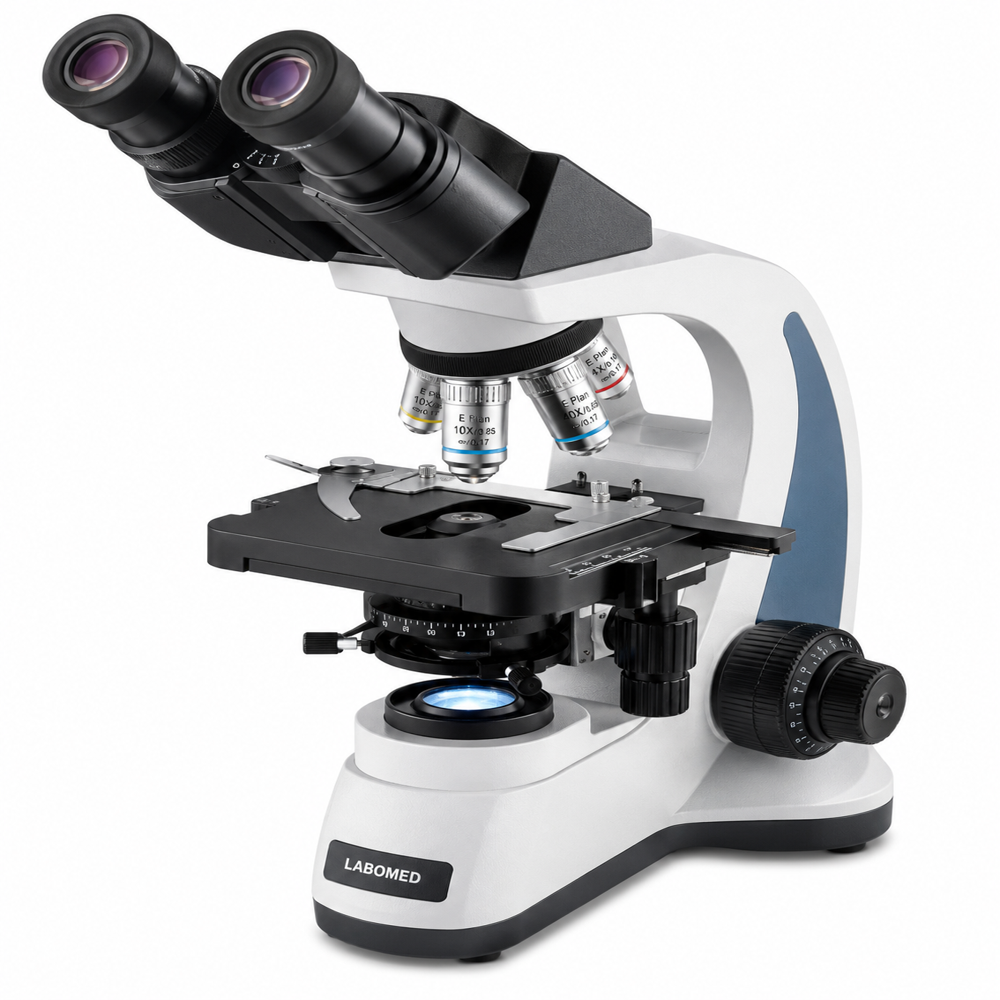

binocular microscope with led superior

Name: binocular microscope with led superior
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 8750.0 INR
Availability: InStock

Price 8750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

binocular microscope with led superior Specification

Features
LED Illumination, Anti-fungal Optics, Reversed Quadruple Nosepiece, Mechanical Stage

Glass Type
Optical Glass for Lenses

Shape
Ergonomic Body, Rectangular Stage

Accuracy
Standard Optical Precision

Power Supply
AC Mains, Rechargeable LED Option

Display Type
Visual via Eyepiece

Temperature Resistance
Standard Laboratory Range

Control Type
Coarse and Fine Focus Knobs

Type
Other

Dimension (L*W*H)
Approx. 370 mm x 240 mm x 390 mm

Equipment Type
Laboratory Microscope

Equipment Materials
Aluminium Alloy, Engineering Plastic

Power
LED, 220V/110V AC

Voltage
220V / 110V

Material
Metal and Plastic

Application
School, Laboratory, University, Medical Research

Stage Size
140 mm x 135 mm

Color
White/Grey

Focusing System
Coaxial Coarse & Fine Focusing with Tension Adjustment

Stage Movement
75 mm x 50 mm (Mechanical)

Objective Lenses
Achromatic 4X, 10X, 40X (Spring), 100X (Oil, Spring)

Dust Cover
Included

Net Weight
Approx. 6.5 kg

Condenser
Abbe Condenser N.A. 1.25, Iris Diaphragm

Illumination Type
High-intensity LED with Adjustable Brightness

Interpupillary Adjustment
Yes (Range: 55-75mm)

Eyepiece Magnification
WF10X/18 mm

Head Type
360 Rotatable, 45 Inclined Binocular

Light Source Life
Approx. 20,000 hours (LED)

binocular microscope with led superior About

Binocular Microscope with LED Superior

Binocular Microscope with LED Superior is a premium laboratory microscope designed for accurate observation in educational, research, clinical, and industrial laboratories. Equipped with a high-performance LED illumination system, it provides bright, uniform, and energy-efficient lighting for clear specimen viewing. The binocular viewing head reduces eye strain during prolonged use, while the precision focusing mechanism ensures sharp and detailed imaging. Its sturdy metal body, high-quality optical components, and smooth mechanical stage make it an ideal choice for schools, colleges, pathology labs, microbiology laboratories, pharmaceutical industries, and research institutions.

Key Features

High-quality Binocular Microscope with Superior LED illumination
Bright, long-lasting, energy-efficient LED light source
Wide Field 10X eyepieces for comfortable viewing
Achromatic objectives for clear, distortion-free images
Coaxial coarse and fine focusing knobs
Mechanical stage with X-Y movement controls
360 rotatable binocular head with adjustable interpupillary distance
Durable all-metal body with corrosion-resistant finish
Ideal for biological, microbiological, educational, and laboratory applications
Low maintenance and long service life

Applications

School & College Laboratories
Medical & Clinical Laboratories
Microbiology Research
Pathology Laboratories
Pharmaceutical Industry
Biotechnology Research
Quality Control Laboratories
Industrial Inspection

Frequently Asked Questions (FAQ)

Q1. What is a Binocular Microscope with LED Superior used for?

Answer: It is used for observing biological specimens, microorganisms, cells, tissues, bacteria, and laboratory samples with high clarity.

Q2. Why is LED illumination better than a halogen lamp?

Answer: LED illumination provides brighter light, consumes less power, generates less heat, and has a much longer lifespan than halogen bulbs.

Q3. Is this microscope suitable for schools and colleges?

Answer: Yes. It is ideal for schools, colleges, universities, research institutes, hospitals, and diagnostic laboratories.

Q4. What magnification does this microscope support?

Answer: Depending on the objective and eyepiece combination, it typically supports magnification from 40X to 1000X.

Q5. Does it come with coarse and fine focusing?

Answer: Yes, it features both coarse and fine focusing knobs for precise image adjustment.

Q6. Is the microscope durable?

Answer: Yes. It is manufactured with a robust metal body and high-quality optical components for long-lasting performance.

Q7. What type of specimens can be viewed?

Answer: It can be used to observe plant cells, animal cells, bacteria, fungi, blood smears, tissues, microorganisms, and prepared laboratory slides.

Q8. Is the LED light adjustable?

Answer: Yes. Most superior LED binocular microscopes include adjustable brightness control for optimal illumination.

Binocular Microscope with LED Superior, LED Binocular Microscope, Laboratory Microscope, Biological Microscope, Research Microscope, Educational Microscope, Clinical Microscope, Pathology Microscope, Microbiology Microscope, Laboratory Equipment, Scientific Microscope, Binocular Compound Microscope, Lab Microscope Manufacturer India, Laboratory Instruments Supplier, Precision Microscope.

Advanced Optical Performance

Equipped with WF10X widefield eyepieces and a quadruple nosepiece with achromatic optical glass objectives, this microscope offers crystal clear magnification from 40X to 1000X total. High numerical aperture and spring-loaded features reduce slide damage and enhance precision for microbiological and histological observation.

User-Friendly and Ergonomic Design

Experience comfort and efficiency with the 360 rotatable, 45 inclined binocular head and an interpupillary range of 55-75mm. The stage, with its large movement range, enables smooth sample focusing, while tension-adjustable coaxial coarse and fine focus knobs provide effortless, accurate adjustments for users of any expertise level.

Reliable LED Illumination for Long-Term Use

Boasting a 20,000-hour LED lifespan and adjustable brightness, the microscope delivers consistent illumination for detailed viewing. An optional rechargeable battery feature ensures operation during power interruptions, making it a versatile tool for teaching and research environments that require extended observation periods.

FAQ's of binocular microscope with led superior:

Q: How do I adjust the LED brightness on this binocular microscope?

A: You can easily adjust the illumination intensity using the built-in brightness control knob located near the base of the microscope. This allows you to optimize light conditions for observing specimens at different magnifications and under various ambient lighting environments.

Q: What is the process for using the oil immersion lens on this microscope?

A: To use the 100X oil immersion objective, first place a drop of immersion oil onto the prepared slide, then carefully rotate the 100X lens into position. Focus gently using the fine adjustment knob, ensuring the lens touches the oil but not the slide, for maximum image clarity.

Q: When should I use the iris diaphragm and Abbe condenser?

A: Adjust the iris diaphragm and condenser to control and focus the amount of light passing through your specimen. Use higher aperture settings for high-magnification work, such as using 40X or 100X objectives, to enhance contrast and sharpness in your observations.

Q: Where is the optimal place to use this binocular microscope?

A: This microscope is best used in clean, stable environments like laboratories, classrooms, or research facilities where consistent power supply and minimal dust exposure are ensured. Its dust cover and sturdy construction also make it suitable for shared educational settings.

Q: How do I maintain the optics and prevent fungal growth?

A: Regularly clean the optical surfaces with lens paper and store the microscope with its dust cover in a dry area. Its antifungal-treated optics help prevent fungal contamination, but maintaining a clean, low-humidity environment extends the life and performance of the instrument.

Q: What benefits does the ergonomic design offer during extended use?

A: The 45 inclined binocular head and 360 rotation minimize neck and back fatigue, while the interpupillary adjustment ensures comfortable viewing for users with different eye distances, making it practical for lengthy observation sessions or shared use.
