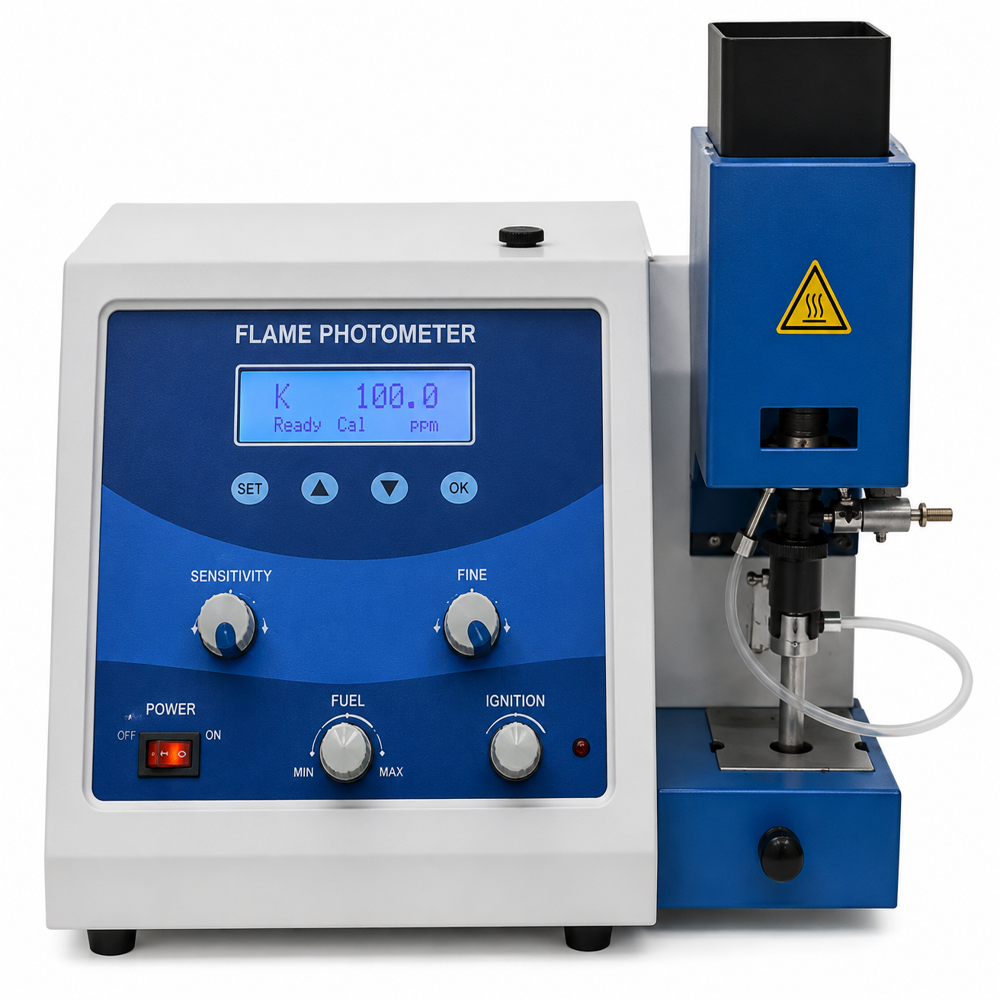

Flame photometer

Name: Flame photometer
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 13800.0 INR
Availability: InStock

Price 13800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flame photometer Specification

Display Type
Digital LCD

Features
Microprocessor based, high sensitivity and reliability, single channel & dual channel analysis, calibration capability, compact design, user-friendly controls

Power Supply
AC mains

Accuracy
2% F.S.R.

Glass Type
Standard laboratory glassware compatible

Shape
Rectangular

Temperature Resistance
Up to 600C (for flame section)

Control Type
Manual & Semi-Automatic

Type
Flame Photometer

Dimension (L*W*H)
Approx. 400 x 300 x 400 mm

Equipment Type
Laboratory Analytical Instrument

Equipment Materials
Powder coated mild steel, stainless steel

Power
Approx. 230 W

Voltage
220-240 V AC

Material
Metal and plastic components

Application
Analysis and determination of Sodium, Potassium, Calcium, and Lithium in solutions

Fuel Type
LPG or Propane gas

Sensitivity Adjustment
Front panel control knob

Calibration
Manual and automatic calibration options

Mounting
Bench-top

Detector Type
Photoelectric flame emission

Reproducibility
2% up to 100 ppm

Operating Temperature
Ambient to 45C

Weight
Approx. 10-12 kg

Measurement Range
0-100 ppm (for Na and K)

Wavelength Range
Na: 589 nm, K: 766.5 nm

Nebulizer Type
Stainless steel, corrosion resistant

Safety Feature
Flame failure detection and automatic gas cutoff

Ignition
Electronic ignition system

Sample Aspiration Rate
2-5 ml/min

Flame photometer About

Flame Photometer SEO Optimized Product Description

Flame Photometer

The Flame Photometer is a high-precision analytical laboratory instrument designed for the rapid and accurate determination of alkali and alkaline earth metals such as Sodium (Na), Potassium (K), Lithium (Li), Calcium (Ca), and Barium (Ba). Widely used in clinical laboratories, pharmaceutical industries, agricultural research, environmental testing, food analysis, and educational institutions, this instrument delivers reliable and repeatable results with excellent sensitivity and stability.

Built with advanced optical technology and a highly efficient burner system, the Flame Photometer ensures fast analysis, easy calibration, and consistent performance. Its user-friendly controls, digital display, and robust construction make it an ideal solution for routine laboratory testing and research applications.

Key Features

High-accuracy flame emission analysis
Measures Sodium (Na), Potassium (K), Lithium (Li), Calcium (Ca), and Barium (Ba)
Digital display for clear and accurate readings
Stable low-noise electronic circuitry
Quick calibration and easy operation
High-sensitivity optical system
Corrosion-resistant, powder-coated metal body
Efficient burner and atomizer assembly
Low gas consumption
Reliable, repeatable, and maintenance-friendly design

Applications

Clinical laboratories
Pharmaceutical industries
Agricultural laboratories
Soil and fertilizer analysis
Food and beverage testing
Water quality analysis
Environmental laboratories
Chemical industries
Research and development laboratories
Universities and educational institutions

Technical Specifications

Elements: Na, K, Li, Ca, Ba (Model Dependent)
Display: Digital LED/LCD
Detection Principle: Flame Emission Photometry
Fuel Gas: LPG/Natural Gas (Model Dependent)
Air Supply: Built-in Air Compressor or External Air Source
Power Supply: 220240V AC, 50 Hz
Construction: Heavy-duty Powder-Coated Metal Body

Why Choose Our Flame Photometer?

Our Flame Photometer is engineered to provide fast, accurate, and dependable elemental analysis for routine laboratory applications. With excellent measurement precision, durable construction, simple operation, and low maintenance requirements, it is an ideal choice for quality control, research, and analytical laboratories.

SEO Keywords

Flame Photometer, Digital Flame Photometer, Laboratory Flame Photometer, Flame Emission Photometer, Sodium Potassium Analyzer, Clinical Flame Photometer, Flame Photometer Manufacturer, Flame Photometer Supplier, Analytical Laboratory Equipment, Laboratory Testing Instrument, Water Analysis Equipment, Pharmaceutical Laboratory Equipment, Scientific Instruments India, Flame Photometer Ambala Cantt.

Superior Sensitivity and Accuracy

Equipped with high-sensitivity features and a microprocessor-based design, the flame photometer delivers results with 2% F.S.R. accuracy for sodium and potassium within a 0-100 ppm range. The dual calibration modes ensure reliable operation whether using manual or automated settings, making it ideal for both research and routine analysis.

Robust and User-Friendly Construction

Built for longevity, the unit features a powder-coated mild steel body and a corrosion-resistant stainless steel nebulizer. The compact, bench-top form factor and intuitive controls provide a seamless laboratory workflow, suitable for various testing environments.

Safety-First Operation

The flame photometer integrates advanced safety features like flame failure detection and automatic gas cutoff. Combined with electronic ignition, these safeguards ensure operator and laboratory safety, even during continuous operation at temperatures up to 45C.

FAQ's of Flame photometer:

Q: How does the flame photometer measure sodium and potassium concentrations in a sample?

A: The flame photometer uses a photoelectric flame emission detector to measure the intensity of light emitted at specific wavelengths by sodium (589 nm) and potassium (766.5 nm) when aspirated into a flame. This emission intensity is proportional to the concentration of each element in the solution.

Q: What calibration methods are available for this flame photometer?

A: This instrument supports both manual and automatic calibration, allowing users to select the mode best suited to their protocols and ensuring reliable, accurate results across a range of test samples.

Q: When should I use the sensitivity adjustment control knob?

A: The sensitivity adjustment knob, located on the front panel, should be used to fine-tune instrument response for optimal detection, especially when measuring samples with varying concentration levels or when improved precision is required.

Q: Where can the flame photometer safely be installed?

A: Designed for bench-top mounting, the flame photometer should be placed in a well-ventilated laboratory environment with ambient temperatures up to 45C. Ensure adequate clearance around the device for safe operation and maintenance.

Q: What safety features are included in the flame photometer?

A: The instrument is equipped with flame failure detection and automatic gas cutoff to prevent accidents. If a flame-out event occurs, the gas supply is immediately shut off, minimizing risks to laboratory personnel and equipment.

Q: How do I clean and maintain the stainless steel nebulizer?

A: The stainless steel, corrosion-resistant nebulizer should be regularly flushed with distilled water to prevent blockages and ensure consistent aspirate flow. Avoid using harsh chemicals that may damage the component or reduce its lifespan.

Q: What are the main application benefits of using this flame photometer?

A: This flame photometer enables rapid and accurate analysis of sodium, potassium, calcium, and lithium in various solution samples, making it invaluable for medical, pharmaceutical, and research laboratories seeking reliable trace element determination.
