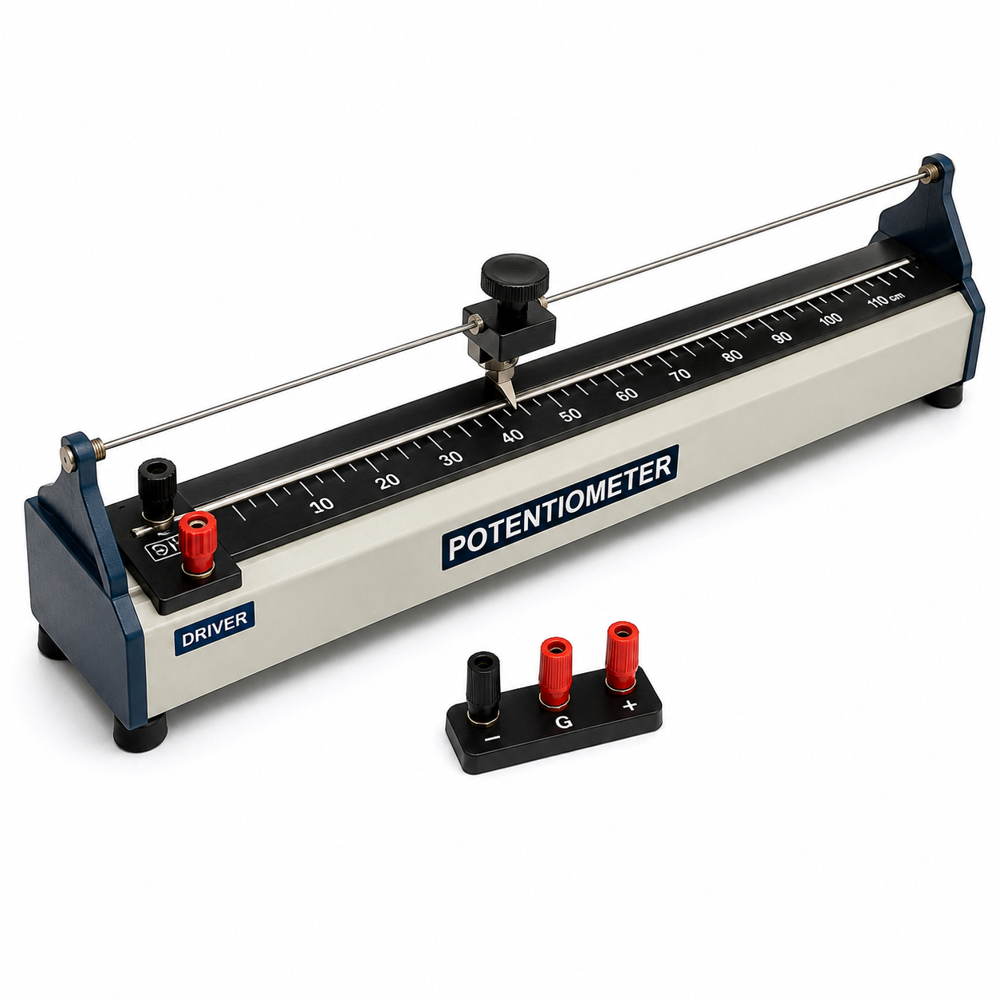

potentio meter

Name: potentio meter
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 5750.0 INR
Availability: InStock

Price 5750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

potentio meter Specification

Temperature Resistance
Usual laboratory range

Accuracy
High precision, millivolt range measurement capability

Control Type
Manual slide jockey

Display Type
Printed scale with manual indicator

Shape
Rectangular bar

Features
Replaceable terminals, smooth sliding jockey, clear engraved scale, sturdy base, dual terminal support

Power Supply
External DC power supply required (for test/driver circuit only)

Type
Other

Size
2 electrode

Dimension (L*W*H)
Approx. 110 cm x 8 cm x 12 cm

Equipment Type
Physics Laboratory Instrument

Equipment Materials
Aluminum body base, metallic scale, high-grade plastic/metal terminals

Power
N/A (passive device)

Voltage
Up to 2V (typical for student model use)

Material
Aluminum, steel, plastic

Application
Laboratory measurement and calibration of potential differences, comparison of EMFs, physics experiments

Contact Material (Jockey)
Steel (corrosion resistant)

Terminal Type
Banana plug compatible terminals

Suitable For
Education, laboratory, physics and electronics practicals

Mounting
Four-point rubber feet for stability

Base Color
Grey/Blue

Accessories Included
Separate terminal block (G, +, -)

Scale Graduation
1 mm/marking

Measuring Length
100 cm calibrated length

Weight
Approx. 1.5 kg

About potentio meter

Potentiometer

Potentiometer (Slide Wire Type) High Precision Laboratory Instrument for Physics Experiments

The Potentiometer (Slide Wire Type) is a high-precision laboratory instrument designed for accurate measurement of electromotive force (EMF), potential difference, and internal resistance without drawing current from the source. Widely used in physics laboratories, educational institutions, engineering colleges, and research centers, this instrument delivers reliable and repeatable experimental results. Constructed with a durable metal base, precision resistance wire, and smooth sliding contact, it ensures excellent conductivity and long-lasting performance.

This laboratory potentiometer is ideal for conducting experiments related to Kirchhoff's laws, cell comparison, calibration of voltmeters and ammeters, and electrical measurements. Its robust construction and easy-to-read graduated scale make it suitable for both student demonstrations and professional laboratory applications.

Key Features

High-quality slide wire potentiometer for accurate measurements.
Precision resistance wire with uniform calibration.
Smooth-moving jockey for reliable electrical contact.
Durable metal body with corrosion-resistant finish.
Clear graduated scale for precise readings.
Low contact resistance for enhanced accuracy.
Suitable for educational, industrial, and research laboratories.
Easy to install, operate, and maintain.
Long service life with stable performance.
Manufactured using premium laboratory-grade materials.

Applications

Physics laboratory experiments.
Schools, colleges, and universities.
Engineering laboratory practicals.
Research and development laboratories.
Calibration of electrical measuring instruments.
Measurement of EMF and potential difference.
Internal resistance determination of cells.
Educational demonstrations and training.

Technical Specifications

Product Name: Potentiometer (Slide Wire Type)
Type: Laboratory Electrical Instrument
Material: Metal Body with Precision Resistance Wire
Scale: Graduated Linear Scale
Operation: Manual Sliding Contact
Application: Electrical & Physics Experiments
Finish: Powder-Coated Corrosion-Resistant Body

SEO Keywords

Potentiometer, Laboratory Potentiometer, Slide Wire Potentiometer, Physics Lab Potentiometer, Electrical Laboratory Equipment, EMF Measurement Instrument, Potential Difference Measuring Device, Physics Practical Equipment, Educational Laboratory Instrument, Scientific Laboratory Equipment, Physics Experiment Apparatus, Potentiometer Manufacturer India.

High-Precision Measurement for Laboratory Use

Engineered for rigorous educational and research environments, this potentiometer offers exact potential difference measurements and EMF comparison, making it a staple in physics laboratories. Its smooth sliding steel jockey and clearly engraved scale enhance the accuracy and repeatability of experimental data, supporting both teaching and research needs.

User-Friendly and Durable Design

Featuring banana plug compatible terminals, a stable four-point rubber base, and a corrosion-resistant steel jockey, this device ensures ease of operation and long-term reliability. Replaceable terminals and a robust aluminum base mean the potentiometer stands up to frequent student handling and varied laboratory conditions.

FAQ's of potentio meter:

Q: How do you connect and use the potentiometer for laboratory experiments?

A: Connect your external DC power supply to the separate terminal block (labeled G, +, -). Attach circuit leads to compatible banana plug terminals. Then, use the manual slide jockey to make contact with the scale, reading potential difference directly via the printed scale and manual indicator.

Q: What is the primary benefit of using this potentiometer in educational experiments?

A: Its high precision, clear 1 mm scale graduation, and robust materials allow for accurate measurement and calibration of potential differences and EMFs. This provides students with reliable and reproducible data for developing strong practical skills in electronics and physics.

Q: When should I replace the terminals or jockey contact?

A: Replace terminals or the jockey contact if you notice poor electrical connection, significant wear, or visible corrosion despite regular maintenance. This ensures the integrity and reliability of your experimental results over repeated use.

Q: Where can this potentiometer be mounted or placed during experiments?

A: With its four-point rubber feet, the potentiometer is stable on any flat laboratory bench, minimizing movement and vibration during use. This promotes precision and safety in busy educational environments.

Q: What materials are used for durability and why are they important?

A: The potentiometer features an aluminum body, steel jockey, metallic measuring scale, and high-grade plastic or metal terminals. These materials resist corrosion and mechanical wear, ensuring accuracy and a long service life even with frequent handling.

Q: Is this potentiometer suitable for voltage sources above 2V?

A: No, it is optimized for laboratory use with voltage sources up to 2V, making it especially suitable for student practicals and standard physics experiments.
