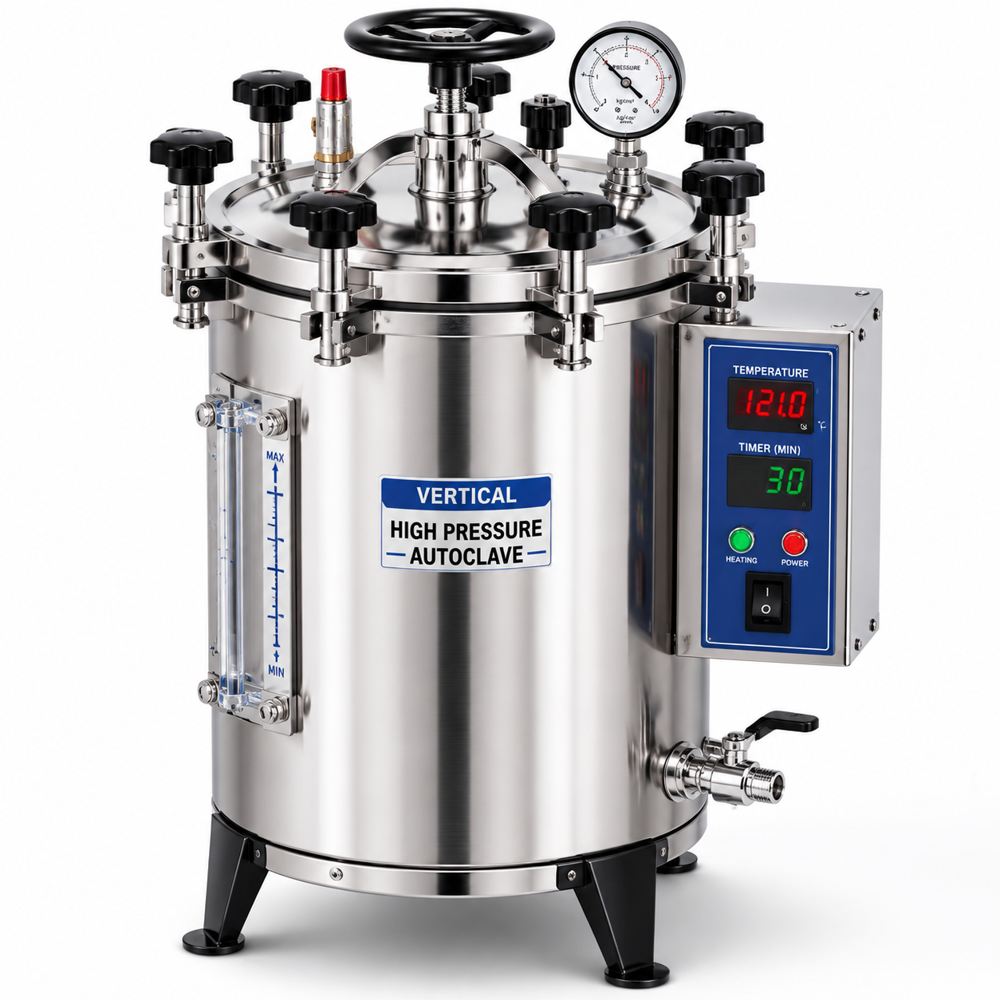

Vertical High Pressure Autoclave

Name: Vertical High Pressure Autoclave
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 54400.0 INR
Availability: InStock

Price 54400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vertical High Pressure Autoclave Specification

Shape
Cylindrical, Vertical Standing

Heating Capacity
1500 - 4000 W, depending on model

Features
Pressure Gauge, Safety Valve, Digital Temperature and Timer Display, Automatic Cutoff, Water Level Indicator, Pressure Release Valve

Control Type
Digital/Automatic Microprocessor Based

Power Supply
Single Phase

Temperature Resistance
Up to 134C (273F)

Accuracy
1C at 121C

Glass Type
Water Level Indicator (borosilicate glass)

Display Type
Digital LED Display

Type
Other

Size
25X450

Dimension (L*W*H)
400 x 400 x 600 mm (common size, customizable)

Equipment Type
Vertical Autoclave

Equipment Materials
Stainless Steel 304/316

Power
2 kW - 4 kW (depending on capacity)

Voltage
2 kilovolt (kV)

Material
Stainless Steel Body (SS 304/316)

Application
Sterilization in hospitals, laboratories, research institutions

Capacity (Ltr)
22 Liter (L)

Chamber Thickness
2.5 - 4 mm

Safety Provisions
Automatic pressure and temperature cut-off, Pressure release valve, Overheat protection

Sterilization Pressure Range
15-20 psi (1.05-1.4 kg/cm2)

Timer Range
0-99 minutes (programmable)

Gasket Material
Silicone/Neoprene Rubber (heat resistant)

Heater Material
Tubular immersion heater of stainless steel

Water Filling
Manual/Automatic (optional in advance models)

Drain Valve
Fitted for easy drainage

Outer Body Material
Stainless Steel (Matt Finish)

Operating Temperature
121C - 134C

Chamber Finish
Mirror Polished

Mounting
Free Standing with Legs

Inner Chamber Material
Corrosion Resistant SS 304/316

Electrical Protection
Fuse/MCB

Lid Type
Radial Locking (single hand wheel)

Vertical High Pressure Autoclave About

Vertical High Pressure Autoclave Advanced Laboratory Sterilization Equipment

The Vertical High Pressure Autoclave is a high-performance laboratory sterilization equipment designed for efficient and safe sterilization using high-pressure saturated steam. It is widely used in microbiology laboratories, hospitals, pharmaceutical industries, research centers, and educational institutions for sterilizing glassware, surgical instruments, culture media, and other heat-resistant materials.

Manufactured with a high-quality stainless steel chamber, this vertical autoclave provides excellent durability, corrosion resistance, and long operational life. The high-pressure steam technology ensures complete sterilization with uniform temperature distribution and reliable results. Equipped with a pressure gauge, safety valve, and user-friendly control system, it offers safe and convenient operation.

Key Features

Heavy-duty vertical design for laboratory applications
High-pressure steam sterilization system
Premium stainless steel construction
Accurate pressure and temperature monitoring
Safety valve for secure operation
Digital temperature and timer control (model dependent)
Uniform heating and efficient sterilization
Low maintenance and long service life
Suitable for continuous laboratory use

Applications

Microbiology and biotechnology laboratories
Medical and healthcare facilities
Pharmaceutical research units
Educational institutions
Diagnostic laboratories
Sterilization of glassware, instruments, and media

Frequently Asked Questions (FAQ)

Q. What is a Vertical High Pressure Autoclave used for?
A. It is used for sterilizing laboratory equipment, glassware, culture media, and medical instruments using high-pressure steam.

Q. What material is used in a Vertical Autoclave?
A. The chamber and body are generally made from high-grade stainless steel for durability and corrosion resistance.

Q. Why is a high-pressure autoclave preferred in laboratories?
A. It provides effective sterilization, reliable performance, and complete destruction of microorganisms through pressurized steam.

Q. Where can this autoclave be installed?
A. It is suitable for laboratories, hospitals, pharmaceutical industries, research institutes, and educational laboratories.

SEO Keywords

Vertical Autoclave, High Pressure Autoclave, Laboratory Autoclave Machine, Stainless Steel Autoclave, Steam Sterilizer, Laboratory Sterilization Equipment, Medical Autoclave, Pharmaceutical Autoclave, Autoclave Manufacturer.

Advanced Safety Features for Peace of Mind

This vertical autoclave comes equipped with multiple safety provisions, such as automatic pressure and temperature cut-off, a pressure release valve, overheat protection, and electrical fuses or MCB protection. The sturdy construction and precise controls ensure both operator and equipment safety, even during continuous or high-demand use.

Superior Build and Accurate Performance

Constructed from high-grade stainless steel (SS 304/316), the autoclave's mirror-polished inner chamber guarantees resistance to corrosion and easy cleaning. The programmable microprocessor-based control system, with digital LED display, ensures sterilization accuracy of within 1C at 121C, delivering consistent results across a range of sterilization scenarios.

Efficient and User-Friendly Operation

The autoclave is designed for ease of use, featuring a single hand wheel radial locking lid and water level indicators made of borosilicate glass. With options for both manual and automatic water filling and a timer range up to 99 minutes, the user can tailor operation for a variety of applications. The free-standing, vertical cylindrical design ensures space-efficient deployment.

FAQ's of Vertical High Pressure Autoclave:

Q: How is the Vertical High Pressure Autoclave operated and programmed?

A: Operation is straightforward using the digital LED display and automatic microprocessor-based controls. Users can set sterilization temperature (121C to 134C) and timer (0-99 minutes) according to their needs. The digital system ensures precise and reliable performance for various applications.

Q: What safety provisions are included in this autoclave?

A: The autoclave is equipped with automatic pressure and temperature cut-off, a safety valve for pressure release, overheat protection, and electrical safety mechanisms such as fuse or MCB. These features protect both operators and the equipment during each sterilization cycle.

Q: When should the water be filled in the autoclave, and what are the available options?

A: Water must be filled before starting the sterilization cycle. The basic model allows for manual filling, while advanced versions feature optional automatic water filling for greater convenience and reduced risk of operator error.

Q: Where is this vertical autoclave typically used?

A: This equipment is used in hospitals, laboratories, and research institutions where rigorous sterilization procedures are essential. Its customizable sizes and sturdy construction make it suitable for a variety of environments.

Q: What maintenance process should be followed for optimal performance?

A: Routine maintenance involves cleaning the chamber, inspecting the gasket (silicone or neoprene) for wear, draining residual water via the fitted valve, and ensuring the pressure release and safety valves function correctly. Regular checks maintain high performance and extend equipment lifespan.

Q: How does the radial locking lid enhance the usage experience?

A: The radial locking lid, operated by a single hand wheel, ensures quick and secure sealing of the chamber. This design simplifies opening and closing, promotes safety during pressurization, and improves overall user convenience.
