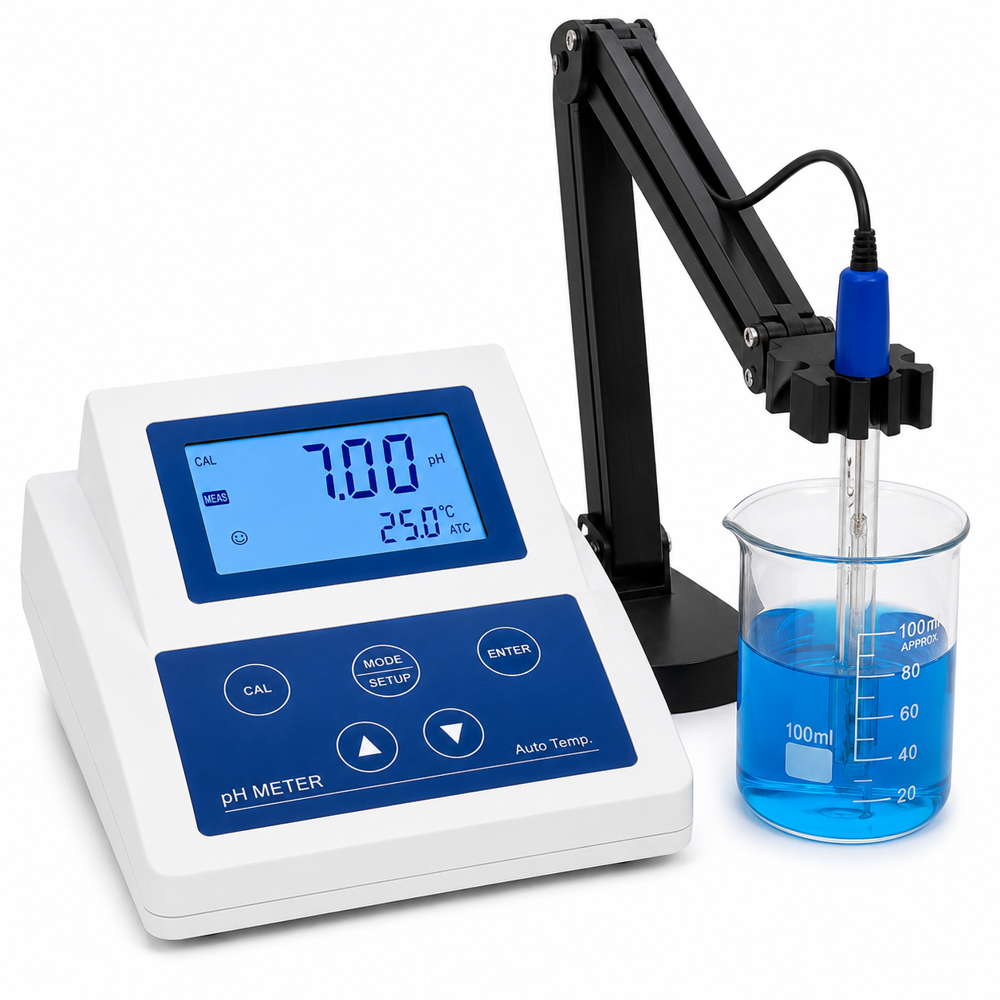

Digital pH Meter

Name: Digital pH Meter
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital pH Meter Specification

Accuracy
0.01 pH

Shape
Rectangular base with integrated display and sloped keypad

Power Supply
Adapter powered, 220V AC / 50Hz input

Temperature Resistance
Up to 60C

Features
Automatic Temperature Compensation (ATC), Calibration mode, Auto temperature display, Easy-to-clean, User-friendly interface, Electrode holder arm

Glass Type
Electrochemical Glass Electrode

Control Type
Microprocessor-based control

Display Type
Large backlit LCD (dual display for pH & temperature)

Type
Other

Dimension (L*W*H)
220 x 180 x 70 mm (approx.)

Equipment Type
Electrochemical Analytical Instrument

Equipment Materials
ABS Plastic Body, Sensitive Electrode Arm

Power
Adapter powered (typically 9V DC)

Voltage
220V AC / 50Hz

Material
Plastic (Body), Glass (Electrode)

Application
Laboratory, Education, Industrial, Environmental Monitoring

Resolution
0.01 pH

Accessories Included
pH Electrode, Electrode Stand, Power Adapter, Instruction Manual

Calibration Points
1 to 3 point automatic/manual calibration

Weight
Approx. 1.2 kg

pH Range
0.00 to 14.00 pH

Temperature Measurement Range
0C to 100C (for ATC)

Electrode Stand
Adjustable and detachable

Electrode Connection
BNC connector

Compliance
CE Marked

Input Impedance
>1012

Operating Temperature
5C to 45C

Relative Humidity
85% (no condensation)

Data Output
None (standard models), optional RS232/USB on advanced models

Digital pH Meter About

Digital pH Meter with Automatic Temperature Compensation (ATC)

Digital pH Meter with Auto Temperature Compensation (ATC)

The Digital pH Meter with Automatic Temperature Compensation (ATC) is a high-precision laboratory instrument designed for accurate measurement of pH values across a wide range of samples. Equipped with advanced ATC technology, the instrument automatically adjusts readings based on sample temperature, ensuring reliable and consistent results without manual correction. It is widely used in pharmaceutical laboratories, research institutes, chemical industries, food and beverage testing, water treatment plants, environmental monitoring, educational institutions, and quality control laboratories.

Featuring a large digital LCD display, easy calibration, and a high-quality pH electrode, this laboratory pH meter delivers fast response time, excellent accuracy, and dependable long-term performance.

Key Features

Automatic Temperature Compensation (ATC) for precise measurements
High-resolution digital LCD display
Fast response with stable readings
Manual or automatic calibration (model dependent)
Durable and high-sensitivity pH electrode
User-friendly membrane keypad
Compact bench-top design
Low power consumption
Rugged laboratory-grade construction
Ideal for continuous laboratory use

Technical Specifications

Measurement Range: 0.00 to 14.00 pH
Resolution: 0.01 pH
Accuracy: 0.01 pH
Temperature Compensation: Automatic (ATC)
Temperature Range: 0C to 100C (Model dependent)
Display: Large LCD Digital Display
Calibration: 2 or 3 Point Calibration
Electrode: Combined Glass pH Electrode
Power Supply: 220240V AC, 50Hz / Adapter
Body Material: Powder-coated Metal or ABS Housing

Applications

Pharmaceutical Laboratories
Chemical Testing Laboratories
Water Treatment Plants
Drinking Water Analysis
Food & Beverage Industry
Environmental Monitoring
Biotechnology Laboratories
Agriculture & Soil Testing
Educational & Research Institutes
Quality Control Laboratories

Advantages

Accurate pH measurement with automatic temperature correction
Reliable performance under varying sample temperatures
Easy operation with minimal maintenance
High stability and repeatability
Long service life and durable construction
Suitable for laboratory, industrial, and research applications

Why Choose Our Digital pH Meter?

Our Digital pH Meter with Auto Temperature Compensation is engineered for laboratories that require dependable and accurate pH analysis. Built with premium components and advanced sensing technology, it offers exceptional performance, quick calibration, and long-lasting durability, making it an ideal solution for professional laboratory testing.

SEO Keywords: Digital pH Meter, Auto Temperature Compensation pH Meter, ATC pH Meter, Laboratory pH Meter, Bench Top pH Meter, Water Testing pH Meter, Digital pH Analyzer, Laboratory Testing Equipment, Pharmaceutical Laboratory Instrument, Chemical Analysis Equipment, Scientific Laboratory Equipment, pH Meter Manufacturer India.

Advanced Measurement Capabilities

Equipped with a wide pH measuring range and high-resolution output, this digital pH meter is designed to deliver accurate results for a variety of samples. Automatic Temperature Compensation (ATC) and dual display for pH and temperature allow real-time, reliable monitoring even in dynamic laboratory conditions.

User-Friendly and Versatile Design

The instrument features both automatic and manual calibration modes (1 to 3 points), a large backlit LCD, and a simple, user-centric interface. The adjustable electrode stand and BNC connector further add to its operational convenience, ensuring optimal electrode placement and easy cleaning after measurements.

Durability and Compliance

Built with a robust ABS plastic body and sensitive glass electrode, this pH meter is resistant to chemicals and easy to maintain. Its detachable electrode arm offers flexibility during use. Additionally, the device is CE marked, confirming its adherence to quality and safety standards for laboratory electronic equipment.

FAQ's of Digital pH Meter:

Q: How do I calibrate the digital pH meter?

A: You can calibrate this pH meter using automatic or manual calibration, with support for 1 to 3 calibration points. Follow the instruction manual to select the calibration mode, immerse the electrode in standard buffer solutions, and follow on-display prompts to complete the process.

Q: What is the typical usage process for this pH meter?

A: To use the device, power it on, attach the pH electrode to the BNC connector, and place the electrode in your sample. The large backlit LCD will display pH and temperature readings. For best accuracy, ensure the system is calibrated regularly and clean the electrode after usage.

Q: When should I recalibrate the pH meter?

A: Recalibration is recommended before every new measurement series, especially when testing different types of samples or after cleaning the electrode. Regular calibration, ideally at least once a day during continuous use, maintains optimum accuracy.

Q: Where can this digital pH meter be used?

A: The unit is designed for laboratory, educational, industrial, and environmental monitoring settings. Its robust construction and user-friendly design make it suitable for both fieldwork and stationary use in controlled indoor environments.

Q: What benefits does Automatic Temperature Compensation (ATC) provide?

A: ATC ensures that pH readings remain accurate despite changes in sample temperature by automatically adjusting the measurement values. This guarantees reliable results across the 0C to 100C temperature measurement range.

Q: How does the adjustable electrode stand improve measurement?

A: The adjustable and detachable electrode stand provides secure and optimal positioning of the electrode during measurements, reducing handling errors and allowing for hands-free operation. This also makes setup and cleaning easier, enhancing efficiency in routine analyses.

Q: What accessories are included with the pH meter?

A: The product comes complete with a pH glass electrode, adjustable electrode stand, power adapter, and instruction manual, providing everything needed for immediate setup and operation.
