Hot Air Oven

Name: Hot Air Oven
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 6250.0 INR
Availability: InStock

Price 6250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hot Air Oven Specification

Glass Type
Tempered/Insulated glass window

Temperature Resistance
Ambient to 250C

Heating Capacity
Ambient to 250C

Control Type
Digital PID Temperature Controller

Shape
Rectangular

Features
Double walled construction, Adjustable shelves, Over-temperature alarm, Air ventilation

Power Supply
Single Phase, 220V AC

Accuracy
1C

Display Type
Digital LED Display

Type
Hot Air Oven

Size
14x14

Dimension (L*W*H)
Approx. 24 x 18 x 18 inches

Equipment Type
Laboratory Hot Air Oven

Equipment Materials
Stainless Steel (inner chamber), Mild Steel (outer body)

Power
Approx. 1500W

Voltage
220V - 240V AC, 50/60Hz

Material
Stainless Steel, Mild Steel, Glass Wool Insulation

Application
Sterilization, Drying, Heating in Laboratories

Capacity (Ltr)
~50 Litres

Operating Environment
Laboratory Room Condition

Safety Features
Overheating Protection, Indicator Lamps

Door Type
Front Opening, Hinged with Handle and Key Lock

Compliance
Meets IS/IEC/CE Standards (As applicable)

Door Gasket
High-grade Silicon Rubber Gasket for Sealing

Interior Finish
Mirror Polish Stainless Steel

Heating Element
Nichrome Wire Heaters

Chamber Volume
Standard/Multiple Sizes Available (20, 32, 50, 100L, etc.)

Exterior Finish
Powder-Coated MS

Insulation
Mineral Wool Insulation for Thermal Efficiency

Air Circulation
Natural Convection (Optional Forced Air Circulation)

Number of Shelves
2 Removable/Adjustable Stainless Steel Shelves

Hot Air Oven About

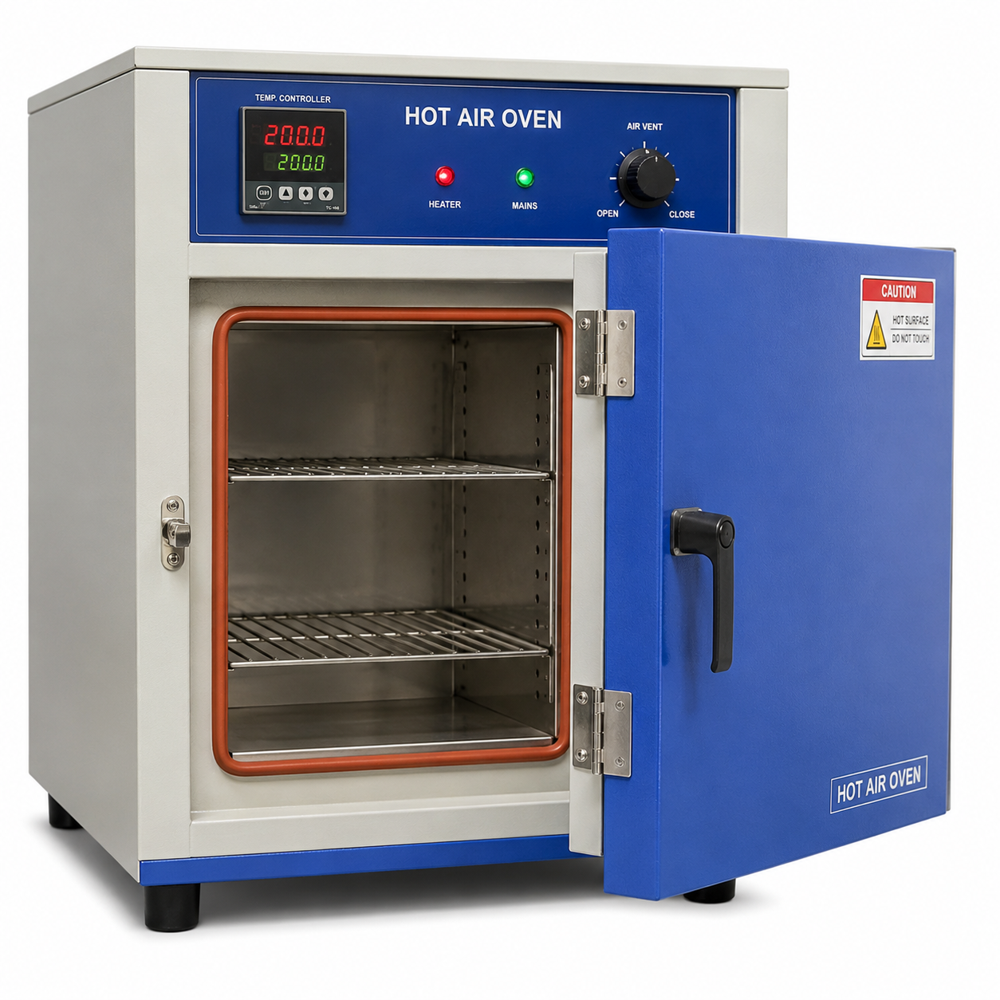

Hot Air Oven

Hot Air Oven is a precision laboratory instrument designed for dry heat sterilization, drying, baking, curing, and heating applications. It features a double-walled insulated chamber with a stainless steel interior for uniform heat distribution and long-lasting durability. Equipped with a digital PID temperature controller, the oven provides accurate temperature control and consistent performance. The adjustable stainless steel shelves accommodate various sample sizes, making it ideal for laboratories, hospitals, pharmaceutical industries, research centers, educational institutions, and quality control laboratories.

Key Features

Digital PID Temperature Controller
Uniform Hot Air Circulation
Double-Walled Insulated Construction
Stainless Steel Inner Chamber
Adjustable Stainless Steel Shelves
Fast Heating & Energy Efficient
Heavy-Duty Powder-Coated Exterior
Safe & Reliable Operation

Applications

Laboratory Sterilization
Sample Drying
Glassware Drying
Pharmaceutical Testing
Research Laboratories
Hospitals & Medical Labs
Educational Institutions
Industrial Quality Control

Technical Specifications

Temperature Range: Ambient +5C to 250C
Controller: Digital PID
Inner Chamber: Stainless Steel (SS)
Outer Body: Powder-Coated Mild Steel
Power Supply: 220240V AC, 50/60 Hz

Precision Heating and Sterilization

Engineered with advanced temperature control and even heat distribution, this hot air oven ensures reliable results for laboratory drying, sterilization, and heating tasks. The digital PID controller provides accuracy within 1C, supporting consistent outcomes across multiple applications. With removable and adjustable shelves, you can efficiently configure internal space for various sample sizes.

Robust Construction and User Safety

The oven's double-walled design, featuring a mirror-polished stainless steel interior and powder-coated mild steel exterior, offers exceptional thermal efficiency and durability. High-grade silicon rubber gaskets provide airtight sealing, while the over-temperature protection and indicator lamps guarantee user safety during operation. The hinged door with a handle and key lock ensures secure closure.

FAQ's of Hot Air Oven:

Q: How is temperature managed and controlled in this hot air oven?

A: The oven uses a digital PID temperature controller for accurate adjustment and maintenance of heat, allowing readings and settings via a digital LED display. Temperatures can be set from ambient up to 250C with an accuracy of 1C, ensuring uniform and reliable thermal conditions.

Q: What is the process for adjusting or removing the shelves?

A: Both shelves inside the hot air oven are designed to be temporarily removed or repositioned. You can lift and slide out the stainless steel racks to accommodate items of different sizes or to simplify cleaning and organization within the chamber.

Q: Where can this hot air oven be used?

A: This equipment is ideal for laboratory room conditions and is perfect for research and quality control tasks in science labs, hospitals, academic institutions, and industrial laboratories where precise heating, sterilization, or drying is required.

Q: What are the key safety features of this oven?

A: The oven includes over-temperature protection to prevent unintended overheating. Indicator lamps display operational status, and the door features a hinged handle with a key lock for added security. The high-grade silicon rubber gasket ensures a tight seal, preventing heat loss and enhancing safety.

Q: When should I use natural convection versus forced air circulation?

A: Natural convection is suitable for standard drying and sterilization processes, where gentle, even heating is needed. Forced air circulation, offered as an option, is recommended for faster drying or applications requiring improved temperature uniformity-ideal when dealing with moisture-rich samples.

Q: How does the oven's insulation enhance its thermal efficiency?

A: The double-walled design, in combination with mineral wool insulation and a silicon rubber gasket, minimizes heat loss and ensures thermal stability. This design not only reduces energy consumption but also provides safer and more consistent operations over extended periods.

Q: What are the benefits of having a digital LED display and PID controller on this oven?

A: A digital LED display ensures clear visibility of current temperature settings and oven status, while the PID controller offers precise, automated temperature regulation for consistently accurate results with minimal manual intervention.
