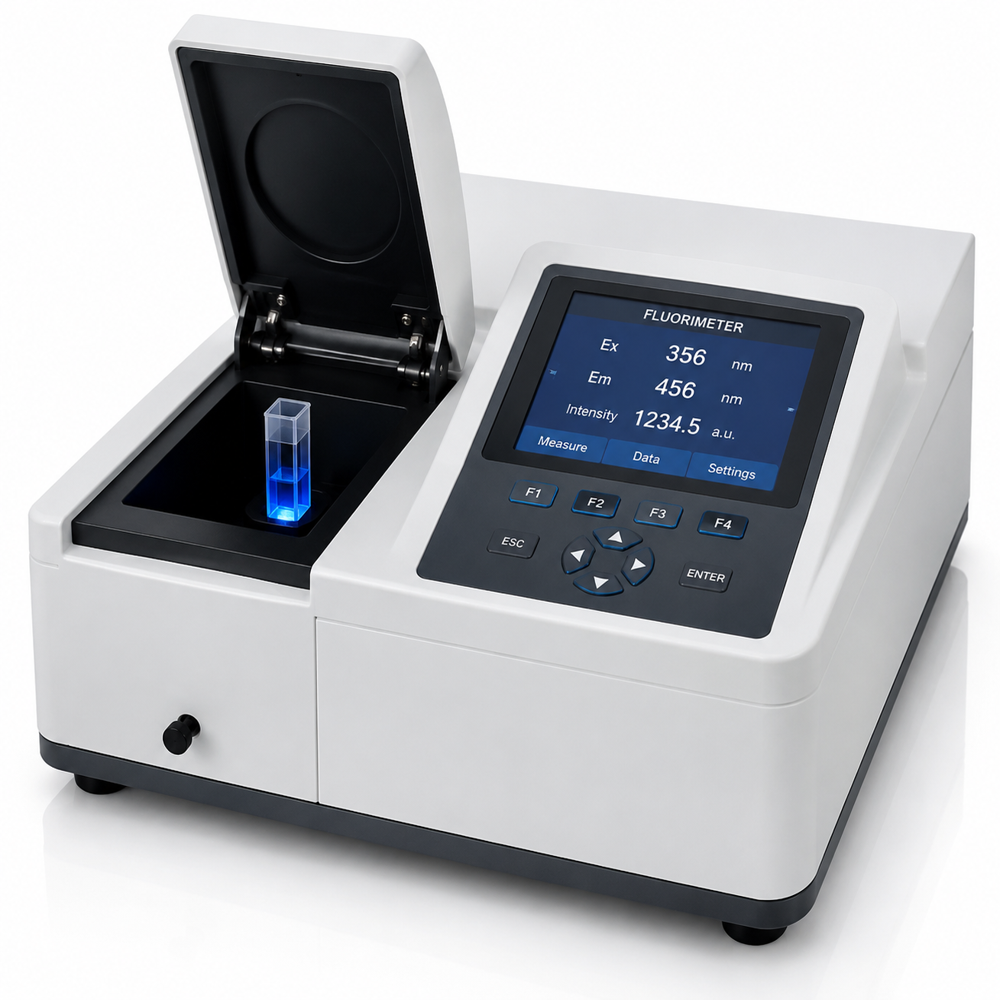

Fluori Meter

Name: Fluori Meter
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Fluori Meter Specification

Temperature Resistance
0C to +40C operation range

Glass Type
Quartz Cuvettes

Power Supply
AC Power Supply

Display Type
Large color LCD display

Control Type
Membrane keypad, microprocessor control

Features
User-friendly interface, compact size, rapid measurement, data logging, preset and custom settings

Shape
Rectangular

Accuracy
1% (intensity)

Type
Other

Dimension (L*W*H)
410 x 300 x 180 mm (approx)

Equipment Type
Laboratory Analytical Instrument

Equipment Materials
ABS Plastic, Powder-coated metal

Power
AC Adapter, Input 100-240V, 50/60 Hz

Voltage
100-240V AC

Material
High-grade plastic with corrosion protection

Application
Measurement of fluorescence intensity, quantitative analysis in chemistry, biology, environmental testing

Capacity (Ltr)
Fits standard 10 mm path length cuvettes

Operating Temperature
5C to 40C

Light Source
High-intensity Xenon lamp or LED

Weight
Approx. 4.5 kg

Calibration
Manual and auto-calibration modes

Software Compatibility
Windows-based data management software

Storage Memory
Up to 1000 results

Protection
Over-voltage and over-current protected

Excitation Wavelength Range
250-700 nm

Photometric Range
0-2000 a.u. (arbitrary units)

Emission Wavelength Range
280-800 nm

Data Output
USB, RS232, or SD card (optional)

Sample Size
Minimum 500 L

Cuvette Holder
Single cuvette, standard and sub-micro available

Compliance
CE Certified, RoHS compliant

Fluori Meter About

Fluorimeter

Fluorimeter | Digital Fluorescence Measurement Instrument for Laboratory Analysis

A Fluorimeter is an advanced laboratory instrument used for measuring fluorescence intensity of samples with high accuracy and sensitivity. It is widely used in pharmaceutical, biotechnology, chemical, environmental, and research laboratories for fluorescence analysis and quantitative measurement of fluorescent compounds.

The digital fluorimeter works by exciting a sample with a specific wavelength of light and detecting the emitted fluorescence signal. It provides accurate, rapid, and reliable results, making it an essential instrument for scientific research and analytical applications.

Key Features of Fluorimeter:

High sensitivity fluorescence detection system
Digital display for easy operation and measurement viewing
Accurate excitation and emission wavelength analysis
Suitable for liquid sample fluorescence testing
User-friendly interface with advanced controls
Compact and durable laboratory design
Reliable performance for research and quality control applications

Applications of Fluorimeter:

Pharmaceutical quality testing
Biotechnology and molecular research
Protein and DNA/RNA fluorescence analysis
Environmental sample testing
Chemical analysis and research
Food and water quality studies
Clinical and biomedical laboratories

Technical Specifications:

Instrument Type: Digital Fluorimeter / Fluorescence Analyzer
Measurement: Fluorescence intensity
Light Source: High stability excitation source
Display: Digital LCD/LED display
Sample Holder: Cuvette-based sample measurement
Application: Research, industrial & educational laboratories

FAQ Fluorimeter

Q1. What is a Fluorimeter used for?
A Fluorimeter is used to measure fluorescence emitted by samples for qualitative and quantitative analysis.

Q2. How does a Fluorimeter work?
It illuminates a sample with an excitation wavelength and measures the emitted fluorescent light intensity.

Q3. Which industries use Fluorimeters?
Fluorimeters are used in pharmaceutical, biotechnology, chemical, environmental, and research industries.

Q4. What are the advantages of a digital Fluorimeter?
A digital Fluorimeter provides accurate readings, fast analysis, better sensitivity, and easy data interpretation.

Q5. Where can I buy a laboratory Fluorimeter?
Laboratory Fluorimeters are available from scientific instrument manufacturers and laboratory equipment suppliers for research and industrial applications.

SEO Keywords:

Fluorimeter Manufacturer in India, Digital Fluorimeter Supplier, Fluorescence Measurement Instrument, Laboratory Fluorimeter, Fluorescence Analyzer, Research Laboratory Equipment, Pharmaceutical Testing Instrument, Scientific Instruments Manufacturer.

Versatile Performance for Fluorescence Applications

With its broad excitation and emission wavelength ranges, the Fluori Meter adapts to diverse fluorescence assays in chemical, biological, and environmental research. The device accepts standard and sub-micro cuvettes, making it suitable for both routine and specialized analyses.

Advanced Data Management and Connectivity

Store up to 1000 results and transfer data via USB, RS232, or optional SD card for flexible reporting and easy integration into digital laboratory workflows. The Windows-compatible software streamlines data analysis and record-keeping.

User-Friendly Operation and Safety Features

The Fluori Meter boasts a large color LCD, membrane keypad, and simple preset/custom settings, ensuring a smooth user experience. Built-in over-voltage and over-current protection safeguard both user and instrument, while CE and RoHS compliance underscore safety standards.

FAQ's of Fluori Meter:

Q: How does the Fluori Meter ensure accuracy during fluorescence intensity measurements?

A: The Fluori Meter delivers 1% intensity accuracy using advanced optics, high-grade quartz cuvettes, and precision electronics. Both manual and auto-calibration modes help maintain consistency, while the high-intensity xenon lamp or LED provides stable, reliable excitation.

Q: What sample sizes and cuvette types are supported by the Fluori Meter?

A: The device supports single cuvettes with both standard and sub-micro variants, fit for a typical 10 mm path length. A minimum sample volume of 500 L is required, ensuring flexibility for routine or low-volume applications.

Q: When should I use manual versus auto-calibration modes?

A: Manual calibration is ideal when you require fine-tuned adjustments for unique sample matrices or experimental protocols. Auto-calibration streamlines routine measurements and ensures consistency across repeated assays.

Q: Where can the data from the Fluori Meter be stored or exported?

A: The Fluori Meter offers onboard storage for up to 1000 results and supports exporting data through USB, RS232, or (optionally) an SD card. This facilitates easy data transfer to computers for further analysis using the Windows-based software.

Q: What is the process for measuring samples using the Fluori Meter?

A: To measure a sample, insert a cuvette containing at least 500 L of your sample into the holder, select the desired excitation and emission settings, and initiate the measurement using the membrane keypad. Results display instantly and can be saved or exported.

Q: How does the Fluori Meter benefit laboratory workflows?

A: With its rapid measurement capabilities, compact footprint, robust data logging, and automated settings, the Fluori Meter accelerates analysis while reducing manual error. It enables efficient, traceable, and reproducible experiments, crucial for research integrity and productivity.
