vaccum pump

Name: vaccum pump
Brand: THE SCIENTIFIC GLASS FABRICATORS
Price: 10300.0 INR
Availability: InStock

Price 10300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

vaccum pump Specification

Features
Continuous Duty, High Suction Capacity, Oil-Sealed, Heavy-duty Construction

Temperature Resistance
Up to 80C Media Temperature

Shape
Rectangular Base with Cylindrical Pump Body

Control Type
Manual or Automatic options

Speed Range
1440 RPM

Power Supply
Electric, 3-Phase Connection

Type
Other

Dimension (L*W*H)
Approx. 900mm x 400mm x 500mm

Size
3 inch 20hp

Equipment Type
Vacuum Pump Unit

Equipment Materials
Cast Iron, Stainless Steel Lined

Power
20 HP

Voltage
415V AC, 3-Phase

Material
Metal Body with Anti-Corrosive Coating

Application
Industrial, Laboratory, Chemical Processing

Capacity (Ltr)
40-250 m3/hr (depending on model)

Mounting
Base Plate Floor Mounted

Oil Capacity
Approx. 15-18 liters

Motor Protection
IP55 Enclosure

Max. Vacuum
Up to 0.05 mbar

Seal Type
Mechanical Shaft Seal

Cooling Type
Air cooled / Water cooled available

Inlet/Outlet Size
DN 50 to DN 80 Flanges

Noise Level
Below 75 dB (A)

vaccum pump About

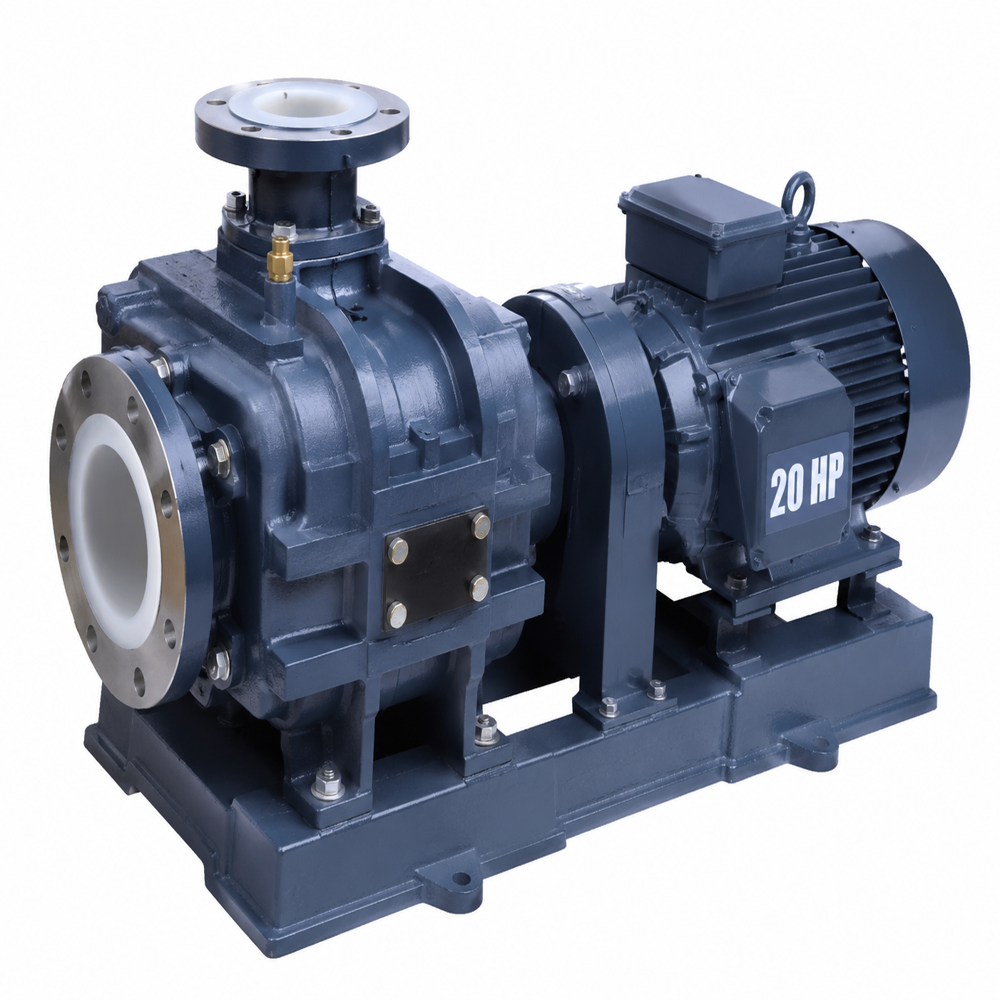

3 Inch 20 HP Vacuum Pump Heavy Duty Industrial Vacuum Pump

The 3 Inch 20 HP Vacuum Pump is a high-performance industrial vacuum solution designed for heavy-duty applications requiring reliable vacuum generation and continuous operation. Manufactured with a robust construction and powerful 20 HP motor, this vacuum pump delivers efficient performance, excellent durability, and smooth operation in industrial environments.

This heavy-duty vacuum pump is suitable for applications such as chemical processing plants, pharmaceutical industries, laboratories, manufacturing units, vacuum drying systems, filtration systems, and other industrial vacuum applications. Its strong body construction ensures long service life with minimum maintenance requirements.

Key Features

Heavy-duty 20 HP motor for powerful vacuum performance
3 Inch suction size for efficient air handling capacity
Robust cast iron construction for industrial use
High efficiency and reliable continuous operation
Low vibration and smooth running performance
Designed for demanding industrial applications
Easy installation and maintenance
Suitable for large-scale vacuum systems

Applications

Industrial vacuum systems
Chemical and pharmaceutical industries
Vacuum filtration plants
Vacuum drying equipment
Process industries
Research and manufacturing units

Frequently Asked Questions (FAQ)

Q. What is the capacity of this vacuum pump?
A. This model is equipped with a powerful 20 HP motor and a 3-inch suction connection designed for heavy industrial vacuum applications.

Q. Where can a 3 Inch 20 HP Vacuum Pump be used?
A. It is commonly used in industrial plants, chemical processing, pharmaceutical units, vacuum systems, and manufacturing industries.

Q. Is this vacuum pump suitable for continuous operation?
A. Yes, its heavy-duty design allows reliable performance for continuous industrial applications.

Q. What are the main benefits of this vacuum pump?
A. High efficiency, durable construction, powerful performance, and low maintenance are the major benefits of this pump.

SEO Keywords

3 Inch Vacuum Pump, 20 HP Vacuum Pump, Heavy Duty Vacuum Pump, Industrial Vacuum Pump, High Power Vacuum Pump, Vacuum Pump Manufacturer, Industrial Vacuum System, Chemical Industry Vacuum Pump.

High Efficiency and Durability

Built with a stainless steel-lined cast iron body, this vacuum pump is engineered to withstand rigorous environments found in industrial and laboratory settings. Its anti-corrosive coating and robust mechanical shaft seal ensure low maintenance, a long service life, and superior resistance to aggressive chemicals and temperatures up to 80C.

Flexible Cooling and Control Options

Users can select between air-cooled and water-cooled configurations to match their application's thermal management requirements. The unit is equipped to handle both manual and automatic controls, adapting seamlessly to a variety of operational processes and preferences for modern industry applications.

FAQ's of vaccum pump:

Q: How does the vacuum pump maintain high suction capacity during continuous operation?

A: The vacuum pump integrates a durable oil-sealed design and a heavy-duty 20 HP motor, allowing it to maintain stable vacuum levels (up to 0.05 mbar) and handle continuous operation without loss of performance. Its robust construction is complemented by a mechanical shaft seal, ensuring reliable suction over extended periods.

Q: What are the recommended applications for this vacuum pump?

A: This unit is ideal for a variety of uses in industrial, laboratory, and chemical processing environments. It excels in applications requiring high suction, continuous duty, and resistance to corrosive substances, such as material handling, solvent recovery, filtration, and vacuum distillation.

Q: When should I choose water-cooled instead of air-cooled for this pump?

A: Opt for the water-cooled model if your application generates substantial heat or if ambient temperatures are high, potentially exceeding air-cooled system capacity. Water cooling offers enhanced thermal management, especially in environments requiring stable operation for extended periods or at higher media temperatures.

Q: Where is the best place to install this vacuum pump unit?

A: Place the pump on a level floor surface using the base plate for secure mounting. It is designed for indoor use, ideally in a well-ventilated area with adequate space around it (approx. 900 mm x 400 mm x 500 mm) to facilitate maintenance, cooling, and easy connection to your process lines via DN 50-80 flanges.

Q: What is the maintenance process for this vacuum pump?

A: Routine maintenance involves monitoring and refilling oil (oil capacity approx. 15-18 liters), checking the mechanical shaft seal for wear, and ensuring the cooling system is functioning efficiently. Regular inspection of the anti-corrosive coating and lined surfaces helps extend equipment lifespan.

Q: How does the pump benefit operations that demand quiet environments?

A: With a noise level below 75 dB(A), the pump operates quietly, making it suitable for laboratories and cleanroom environments where minimizing sound is critical, without compromising its high suction capacity or continuous duty performance.
